Optical Turnstiles DS2000 + DS3000
- DS2000+DS3000 flap turnstile is a special turnstile gate which is a flap lane plus a swing lane mechanism, flap lane with 40~45 people per minute flow rate ensures the pass speed in heavy traffic and swing lane is prepared for disabled, persons for take big luggages and emergency needs.
- It has standard relay signal, which can be integrated with any kind of third-party access control system and device, RFID reader and fingerprint, for instance.
- Mainly material is full brushed stainless steel and black painting for decoration.
- For the body, it’s arc shape cabinet, no any angle, which make it safer to prevent people from injury.
- It’s with unique bright, long and slim LED indication bar at front. On top side also place a LED indicator to show entry denied or accepted.
Features of Daosafe Optical Turnstiles
- Long-life performance, high operation dependability and fast response
- The whole system runs smoothly, low noise, no mechanical impact
- Single directional or Bi-directional is selectable
- Automatic reset function: arms will lock automatically within 5s (can be setting) if passenger delay to entry
- When power is off, arms will open automatically, which is complying with fire safety requirements
- LED indicator (red × means no entry; green → means entry)
- Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion
- Anti-intrusion function, the turnstile is locked automatically until valid opening signal input
- Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction
- Anti-trailing function, the turnstile alarm if someone wants to burst in without permission
- In case of emergency, the arms will open automatically for free passage
- Easy to install and maintain
- 3-year warranty support
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
Full 304 stainless steel
1 of 6LED indicator
2 of 6LED indicator
3 of 6RFID card reader
4 of 6Transparent acrylic
5 of 6Infrared sensors
6 of 6
Product Parameters
| Model No. | DS2000+DS3000 |
|---|---|
| Brand | Daosafe |
| Framework Material | 304 Full Stainless Steel + Stoving Varnish |
| Arm Material | Plexiglas - transparency |
| Dimension | 1400 * 280 * 1000mm |
| Weight | 70kg/pcs (single core), 85kg/pcs (double core) |
| Passage Width | 600 (flap turnstile lane), 900~1200mm (disabled lane) |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15 °C - 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 40-45 people per minute |
| LED Indicator | Yes |
| Infrared Sensor | 6 pairs (standard) |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
Clients Gallery And Video
Click on images to enlarge

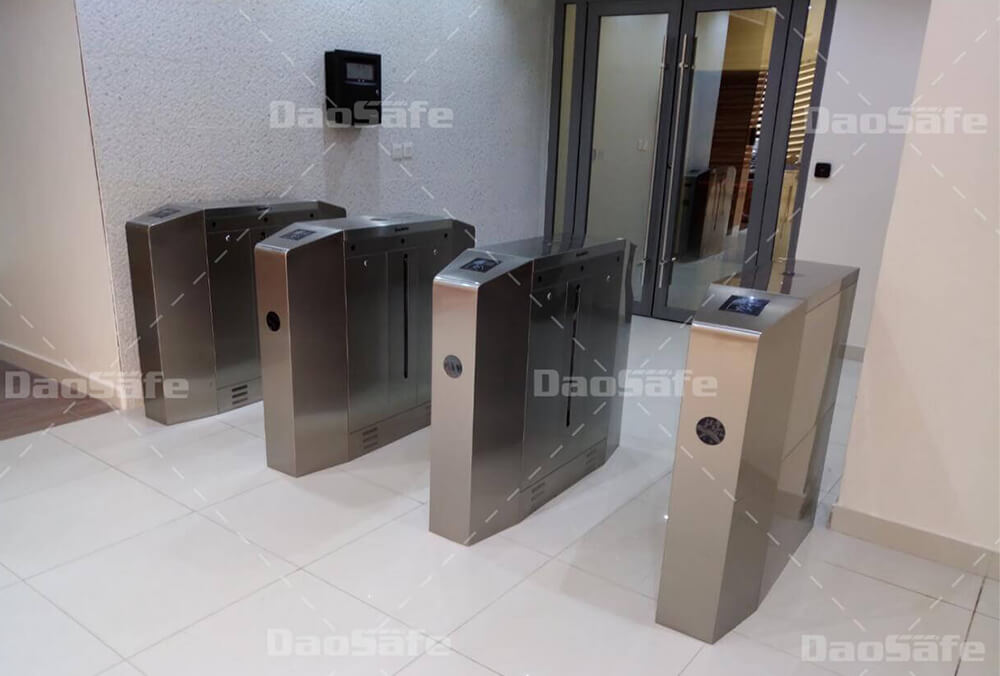

The Office Building in Ecuador 1
The Office Building in Ecuador 2
The Office Building in Korea 5
The Office Building in Korea 2
The Office Building in Korea 1
The Office Building in Korea 4
The Office Building in Korea 3
The Office Building in Cyprus 1
The Office Building in Cyprus 2
The Gambling House in China 1
The Gambling House in China 2
The Port Area in Maldives 1
The Office Building in UAE 1
The Office Building in UAE 2
The Elevator of Building in Nigeria
The Office Building in Nigeria 1
The Office Building in Nigeria 3
The Office Building in Nigeria 4
The Office Building in Nigeria 1
The Gym in Cambodia 3
The Office Building in Korea
